2000ton per month wood pellet plant malaysia

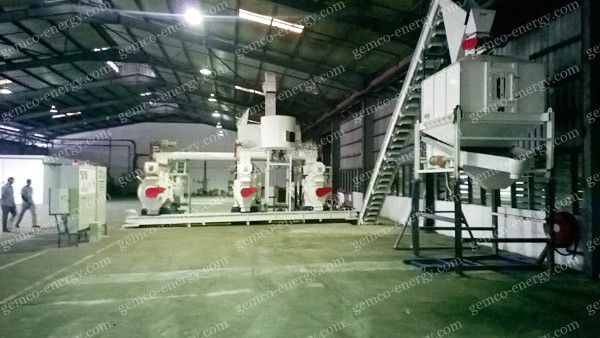

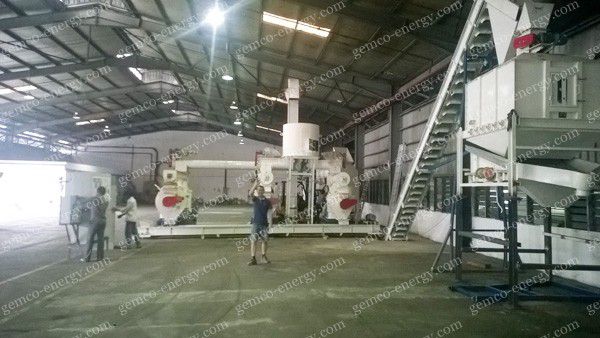

This 2000ton/month pellet plant for wood shavings and sawdust is located near the North Port of Klang in Malaysia.

The client had a set of BPM508 wood pellet machine before. At the end of 2014, he purchased another 2 sets of BPM420 wood pellet machine with other auxiliary equipments and a unit of 3ton/h drying system.

This project was shipped to the client at the beginning of Dec. 2014, and till Jan. 13rd, 2015 it was completely installed and put into normal operation.

The wood pellet plant flowchart

Dry material—sieving—pelleting—cooling—packaging

Wet material— drying—sieving—pelleting—cooling—packaging

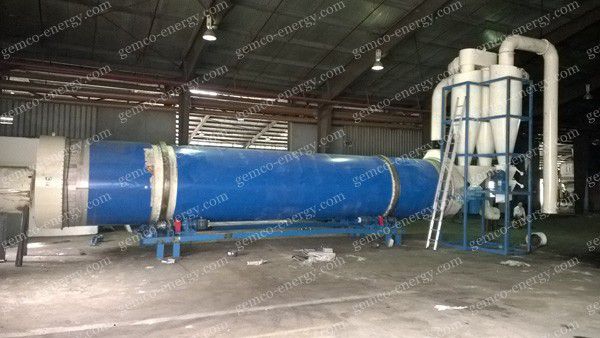

Drying system

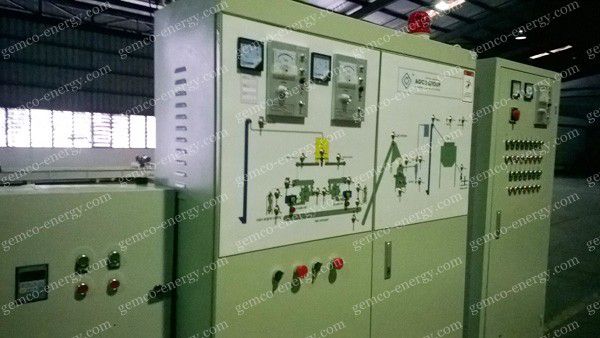

Electric control cabinet

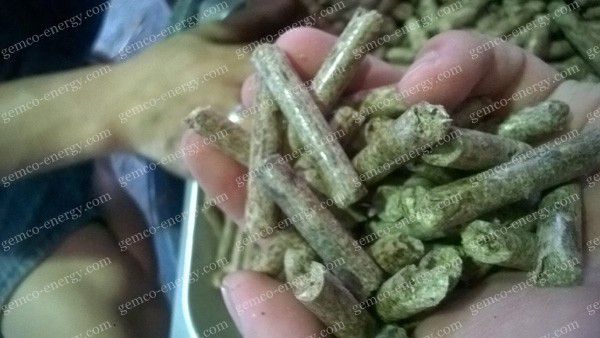

Final wood pellets

The raw material wood shavings and some sawdust come from furniture factory, while a portion of sawdust comes from sawmill.

Now the monthly output of this pellet plant is 2000ton. Pellet size: 6mm and 8mm.

The client also planned to expand the productivity to 5000ton/month in May, 2015.
